Description

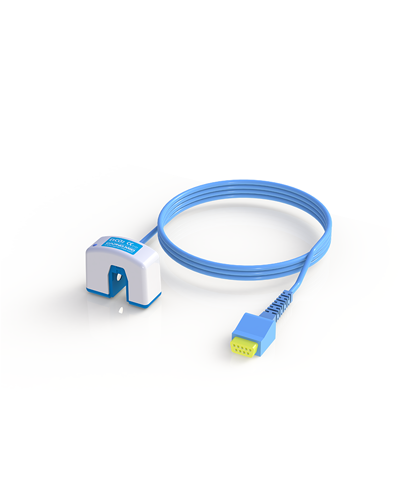

Mainstream EtCO2 Sensor
Employed in conjunction with carbon dioxide function monitors and ventilators, it accurately and swiftly collects end-tidal carbon dioxide values, generating visualizable curves. Both reusable and disposable product consumables are available.
Feature:
- Boasting a comprehensive range of models, it is adaptable to numerous renowned global manufacturer devices, demonstrating extensive compatibility.
- Crafted from medical-grade TPU plastic and low-impedance wires, it exhibits superior texture, bend resistance, corrosion resistance, and waveform stability.
- The device-end connectors and electrode surfaces are gold and nickel-plated, ensuring excellent conductivity and reliable contact at the connection points. Utilizing imported electronic components, it offers accurate values and stable waveforms.
Specification
| Project | Specifications |
| Principle of Operation | Non-dispersive infrared(NDIR) single beam optics, dual wavelength, no moving parts. |
| Initialization Time | Capnogram displayed in less than 3 seconds，full specifications within 3 minutes(At 25°C) |
| CO2 Measurement Range | 0 – 114 mmHg; 0 – 15 %; 0 – 15.2 kPa |
| CO2 Rise Time | Rise Time Less than 80 ms |
| CO2 Resolution | 0.1mmHg 0 to 38 mmHg. |
| 0.25 mmHg 39 to 114mmHg. | |
| CO2 Accuracy | 0 – 40mmHg ±2 mmHg. |
| 41 – 76mmHg ±5% of reading. | |
| 77 – 114 mmHg ±8% of reading. | |
| Above 80 breaths per minute ±12% of reading. | |
| * Note: Gas temperature at 25°C. | |
| CO2 Stability | Short term drift: Drift over four hours shall not exceed 1 mmHg maximum. |
| Long term drift: Accuracy specification will be maintained over a 120-hour period. | |
| Sampling Frequency | 100Hz。 |
| Respiration Rate Range | 3 to 150 breaths per minute. |
| Respiration Rate Accuracy | ±1 breath. |
| Temperature | Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C. |
| Humidity | Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing. |
| Atmospheric Pressure | Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg. |
| Water Resistance | IPX4 – Splash-proof – Sensor only. |
| Sensor Weight | <85g |
| Sensor Size | Deep*Wide*High: 48mm * 24.3mm * 35.5mm. |
| Cable Length | 2.4m |
